This if for the board that MakeHaven has on hand, as of 1/1/2024.

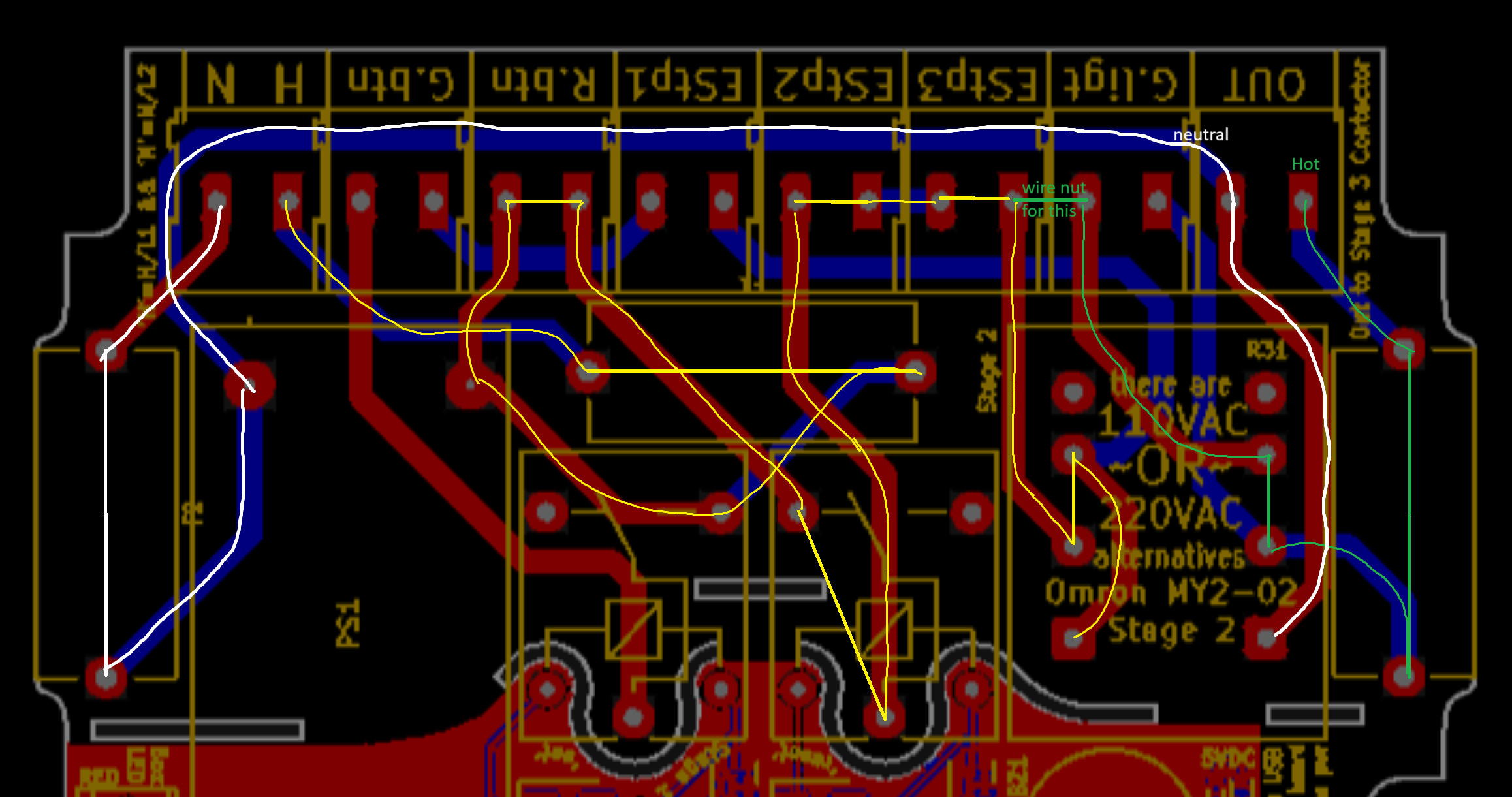

This Gerber screenshot has been marked-up to show steady-state current supply for the tool or contactor. If you look closely, the hand-scribbled lines show the current-path on visible traces. The straight lines show the current passing through some kind of component, rather than the PCB itself. With a little more sleuthing: you can probably even trace out the branch of the 'Hot' circuit that is basically only used for an instant to start current flowing to the stage 2 (Omron) relay's coil.

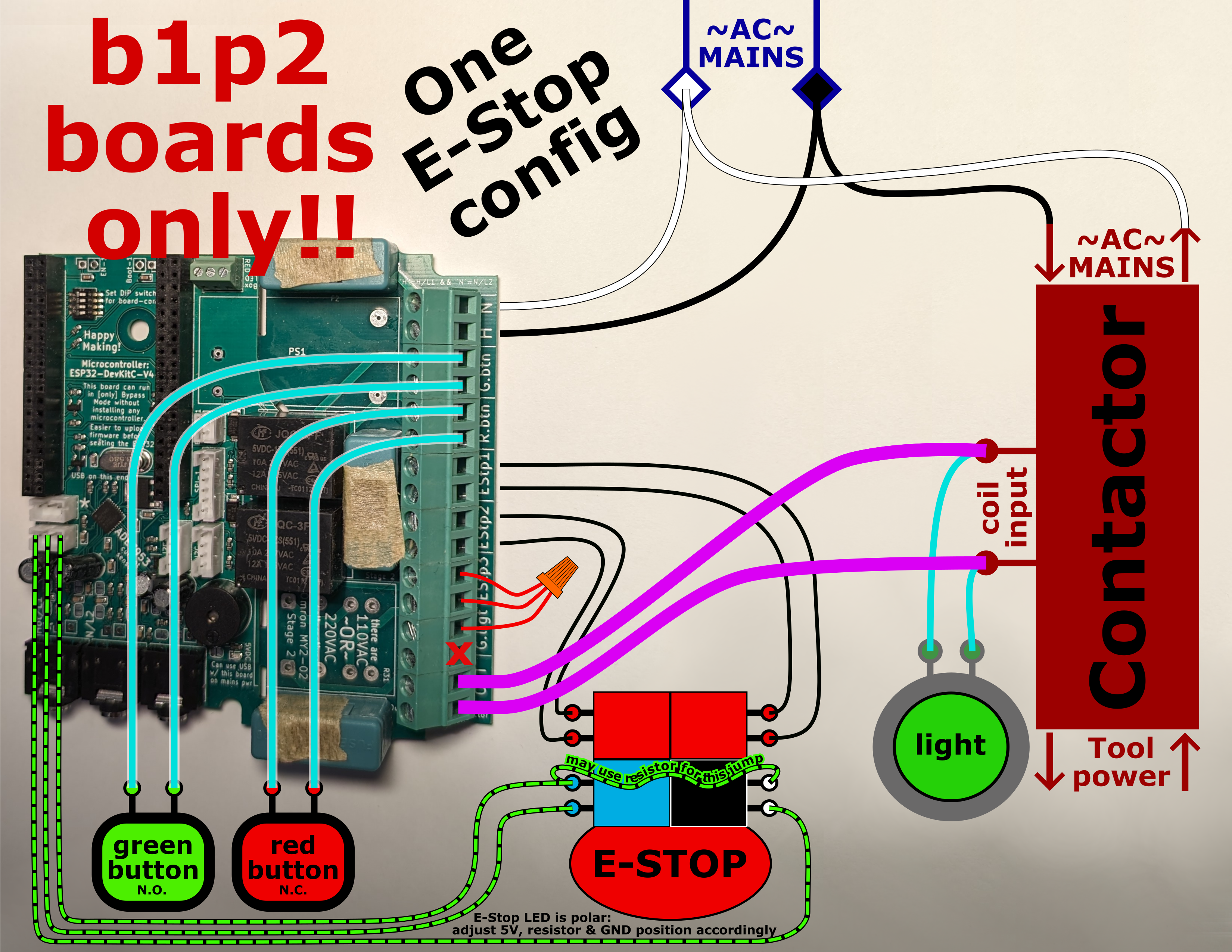

This shows the needed connections in somehwat of a more human-understandable way...hopefully.
